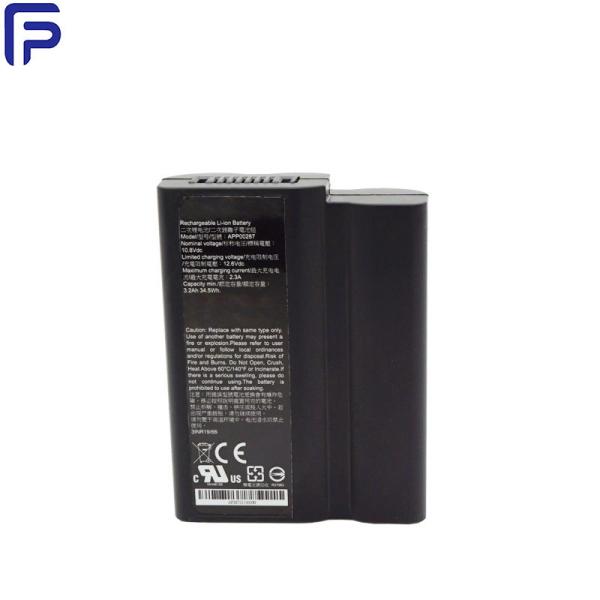

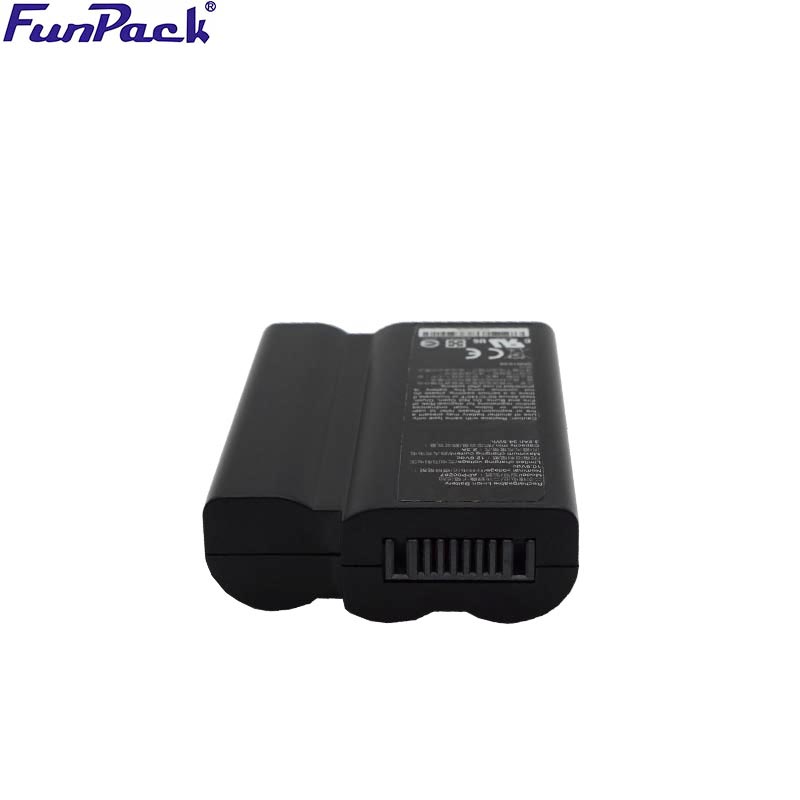

10.8V 3200mAh Rechargeable Lithium Ion Battery For Medical Equipment
Features:
Worldwide approvals and certification of safety standards
No development costs, fast time-to-market
lithium-ion cells with the market’s highest energy density
Product materials can be customized according to customer requirements
Numerous and redundant safety features, e.g.
High Light:
Rechargeable batteries have built-in high quality PCB board,
thermal protectors and circuit breakers,
effectively avoiding the over-charge, and short circuit.
High Capacity with Small Size
Product Parameters:
| Item | Specification |
| Battery Pack Type | 3S1P Removable |
| NCR18650BF |
| Capacity | 3350mAh(Typ) 3200mAh(min) |
| Standard Charging Current | Charge Current – Continue@ 0 ~ 10°C 12.6V:390mA(0.12C) |
| Charge Current – Continue@ 10 ~ 45°C 12.6V:640mA(0.2C) |
Standard Discharging
Current | 640mA(0.2C) |
Maximum Charging
Current |
| 12.6V@ 0℃~10 ℃, Cut off ≦65mA | 1625mA |
| 12.6V@ 15℃~45 ℃, Cut off ≦65mA | 2300mA |
| Maximum Discharging Current | Discharge Current – @ -20℃~0℃:640mA |
| Discharge Current – @ 0℃~60℃:3250mA |
| Nominal voltage | 10.8V |
Discharge Cut-off
Voltage | 9.0V |
Suggestive Discharge
Cut off Voltage | 9.6~9.9V |
| Cycle life | After 300 cycles (Under 25+5℃, 65±5%RH) |
| Environmental using conditions |
| When the battery is charged | 0 ~ 45 ℃ |
| When the battery is discharged | -20~ 60 ℃ |
| When stored within 1 Month | -20~ 50 ℃ |
| When stored within 6 Months | -20~ 40 ℃ |
| When stored within 12 Months | -20~ 20 ℃ |
| Impedance | ≦200mΩ |
| Weight | Below 170g |
Application:
For Medical equipment,such as Medical sonic knife
Packing Detail: Customer customized service accepted
Delivery Detail: Sample 7-15 days, Quantity order 25-30days
Q1: Are you factory?
A: Yes, we are professional manufacturer for polymer batteries since 2017
Q2: What is MOQ for this product in your company?
A: 1000pcs.
Q3: When you ship my order?
A: Normally 35-45days after payment confirmed, but it can be negotiated based on order qty and production schedule.
Q4: Can I get the pre-production sample?
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.
Q5: Can battery size customized available?
A: Yes, Please send up the capacity and max battery size, so that we can search our model for you.
Q6: How about the quality grantee period?
A: One Year.
Q7: How can you guarantee the production quality?
A: We have more than 5 years experience of polymer battery production. Our production quality follow strict control program.
We have 3 times inspection for finished product before package. All of our batteries are 100% tested and installed before
shipment.
